Bond every link
↗Blend fiber, cable, fixed wireless, LTE, 5G, and satellite into one usable WAN pool with health checks, dynamic weighting, and application-aware failover.
multi-WAN link health monitoring
// SD-WAN APPLIANCE

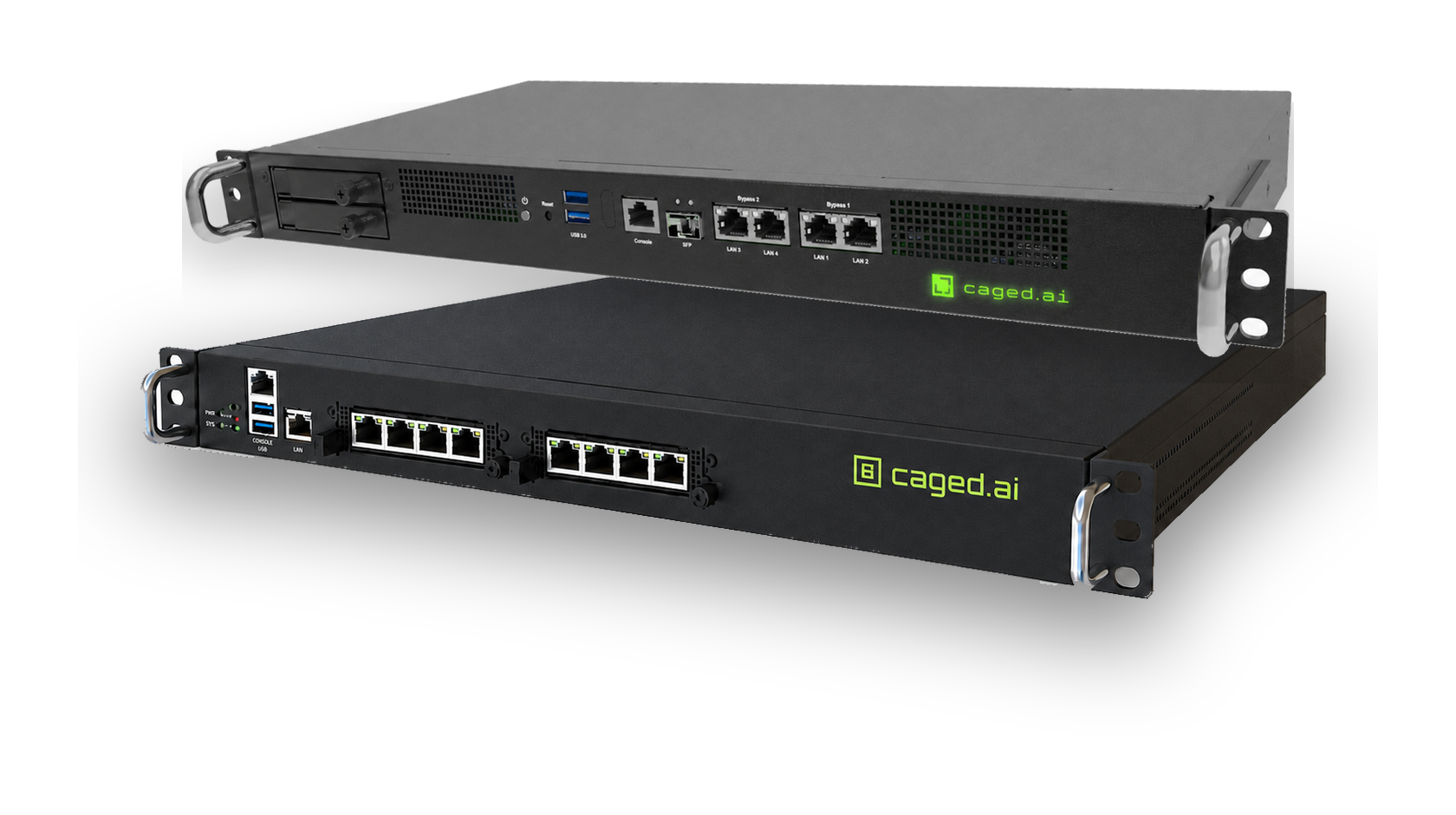

Branch WAN gateway with AI policy built in.
Fanless desktop and 1U rackmount options for bonded internet, path-aware SD-WAN, encrypted branch-to-branch mesh, and policy controls for routed AI API traffic. Built for sites that need resilient connectivity and central management across portable offices and branch locations.
Loading animation…
// SD-WAN FEATURES
One edge box for unreliable internet.
Caged uses multiple WAN links as a single managed fabric, configured via a centralized Portal, then keeps policy execution close to the branch so failover, steering, and AI controls happen where traffic starts. Confirm hardware sizing, supported endpoints, and feature availability for your deployment with the team.
read_the_wan_bonding_brief →QoS automation
↗Automatically configure link buffers across bonded WAN paths to manage queue buildup as traffic and link conditions change.
auto-tuned link buffers
Encrypted branch-to-branch mesh
↗Site-to-site tunnels form on demand, then steer over the best WAN path for voice, point-of-sale, cloud access, and private application traffic.
full mesh policy controlled
Zero-touch rollout
↗Ship hardware to a site, claim it in the portal, assign policy, and let the appliance pull its network profile without local configuration work.
claim + push portal workflow
AI-ready edge
↗Apply model routing, virtual API keys, and configured privacy policies to supported cloud or local LLM API requests routed through the gateway.
one fabric WAN + AI policy
Traffic steering
↗Prioritize voice, payment, ERP, and AI workloads using traffic policies and available WAN paths.
per policy app-aware paths
Fleet operations
↗Track site health, push bulk changes, stage firmware upgrades, and roll back branch profiles from a single pane of glass.
portal central fleet management

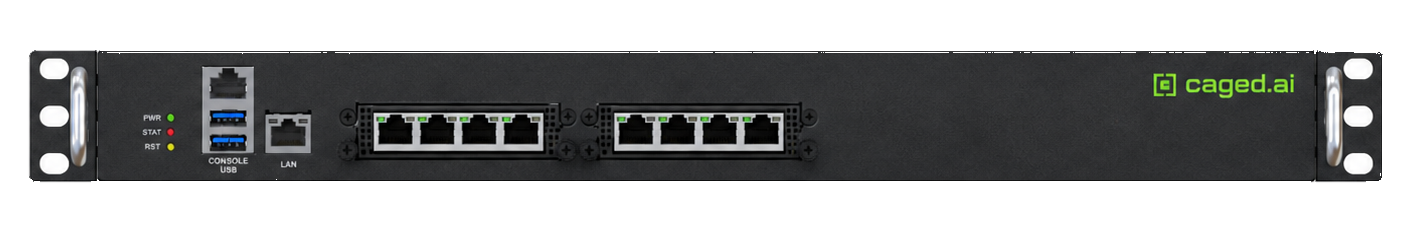

// FRONT PANEL
Ports arranged for inline branch resilience.
WAN/LAN
4 WAN + 2 LAN ports
WAN: 4x 2.5GbE RJ45.
LAN: 2x 2.5GbE RJ45 for the local network.
CELLULAR
Up to 2 built-in 5G modems
Optional built-in 5G connectivity for the Small / Portable office model.
WAN/LAN
3 WAN + 2 LAN ports
WAN: 2x 2.5GbE RJ45 plus 1x GbE SFP.
LAN: 2x 2.5GbE RJ45 for branch handoff and local network segments.
Wireless
2x USB 3.2 Type A
External LTE / 5G modems ready for wireless WAN expansion and carrier diversity.
WAN/LAN
6 WAN + 2 LAN ports
WAN: 2x 10GbE SFP plus 4x 2.5GbE RJ45.
LAN: 2x 10GbE SFP for branch handoff and local network segments.
Wireless
2x USB 3.2 Type A
External LTE / 5G modems ready for wireless WAN expansion and carrier diversity.
// HARDWARE & SOFTWARE SPECS
Built for your workspace.
Form factor
Fanless desktop appliance
WAN interfaces
4x 2.5GbE RJ45
LAN interfaces
2x 2.5GbE RJ45
Built-in cellular
Optional: up to 2 built-in 5G modems
Power supply
External power adapter, AC 100V–240V, 50–60Hz
Cooling
Fanless passive cooling
Dimensions
185mm(W) x 185mm(D) x 44mm(H)
Operating environment
0°C to 40°C (32°F to 104°F)
Storage environment
-40°C to 70°C (-40°F to 158°F)
Storage humidity
5% to 95% RH, non-condensing
Certification
Manufacturer lists EMC, RoHS, CE, and FCC
Confirm documentation for the selected configuration
Networking
Traffic classes, QoS, DNS, stateful firewall, NAT, policy routing, dynamic WAN load balancing, encrypted tunnels, WAN bonding, DHCP, SNMP
Portal
Device GUI access via Portal, topology design, health monitor, audit logs, bulk configuration, AI based tech support, firmware management, user management, license management
AI gateway
Portal-managed model providers, virtual API keys, model allow-lists, spend and request budgets, RPM/TPM limits, metadata-only audit, key-scoped PII firewall policies, and LLM API routing for cloud or local model endpoints
Form factor
1U rackmount, 8.25" chassis depth
WAN interfaces
2x 2.5GbE RJ45 + 1x GbE SFP
LAN interfaces
2x 2.5GbE RJ45
Power supply
Optional 60W or 100W built-in open frame AC power supply
AC 100V-240V input, DC 12V output
Cooling
CPU: passive heatsink
System: 2x fans
Dimensions
438mm(W) x 209.6mm(D) x 44mm(H)
17.24"(W) x 8.25"(D) x 1.73"(H)
USB
2x USB 3.2 Gen 1, Type A
Power controls
Front: 1x reset button, 1x power button
Rear: 1x AC power inlet, 1x power switch
Operating environment
0°C to 40°C (32°F to 104°F)
Storage environment
-20°C to 70°C (-4°F to 167°F)
Humidity
5% to 95% RH, non-condensing
Certification
Confirm CE/FCC documentation for the selected hardware configuration
Networking
Traffic classes, QoS, DNS, stateful firewall, NAT, policy routing, dynamic WAN load balancing, encrypted tunnels, WAN bonding, DHCP, SNMP
Portal
Device GUI access via Portal, topology design, health monitor, audit logs, bulk configuration, AI based tech support, firmware management, user management, license management
AI gateway
Portal-managed model providers, virtual API keys, model allow-lists, spend and request budgets, RPM/TPM limits, metadata-only audit, key-scoped PII firewall policies, and LLM API routing for cloud or local model endpoints
Form factor
1U 19" rackmount, 18.58" chassis depth
WAN interfaces
2x 10GbE SFP + 4x 2.5GbE RJ45
LAN interfaces
2x 10GbE SFP
Power supply
300W redundant AC power supply
AC 100V-240V @47Hz-63Hz
Cooling
CPU: passive heatsink
System: 5x smart fans
Dimensions
438mm(W) x 471.93mm(D) x 44mm(H)
17.24"(W) x 18.58"(D) x 1.73"(H)
USB
2x USB 3.2 Gen 2x1 ports, Type A
Power controls
Front: 1x power button, 1x reset button
Rear: 1x AC power supply or 1x 300W redundant power supply
Operating environment
0°C to 40°C (32°F to 104°F)
Storage environment
-20°C to 70°C (-4°F to 167°F)
Humidity
5% to 95% RH, non-condensing
Certification
Confirm CE/FCC documentation for the selected hardware configuration
Networking
Traffic classes, QoS, DNS, stateful firewall, NAT, policy routing, dynamic WAN load balancing, encrypted tunnels, WAN bonding, DHCP, SNMP
Portal
Device GUI access via Portal, topology design, health monitor, audit logs, bulk configuration, AI based tech support, firmware management, user management, license management
AI gateway
Portal-managed model providers, virtual API keys, model allow-lists, spend and request budgets, RPM/TPM limits, metadata-only audit, key-scoped PII firewall policies, and LLM API routing for cloud or local model endpoints
// AI COMPATIBILITY
Cloud and local AI. One policy plane.
- Cloud & local models
- OpenAI, Anthropic, Azure OpenAI, Amazon Bedrock, Google Gemini, Mistral AI, Cohere, DeepSeek, and OpenRouter. Configured local model endpoints share the same policy plane.
- Client APIs
- OpenAI-compatible Chat Completions and Responses when enabled, Anthropic Messages, and model discovery. Streaming and tool calling depend on the configured model and API format.
- Access & budgets
- Virtual API keys, model allow-lists, spend and request budgets, and request/token rate limits.
- Privacy & audit
- Configured PII detection, masking, and blocking for supported request content, with metadata audit and usage records. Coverage depends on the payload and policy.
These controls apply to supported API requests routed through Caged. Select the provider, model, and policy that fit your applications.
read_the_ai_governance_brief →For measured privacy inspection times and test conditions, see the lab evidence.
// PILOT PATH
Put one site on bonded WAN.
Start with a home office, branch, vehicle, or lab rack. Validate ISP bonding, portal policy, QoS automation, and AI traffic controls before expanding fleet-wide.
01
ship appliance
Place the desktop or rackmount unit at the target site and connect available WAN links.
02
claim in portal
Bind hardware to the tenant, assign the site, and verify live health telemetry.
03
push branch policy
Apply link steering, QoS, firewall, and AI gateway policy from one dashboard.
